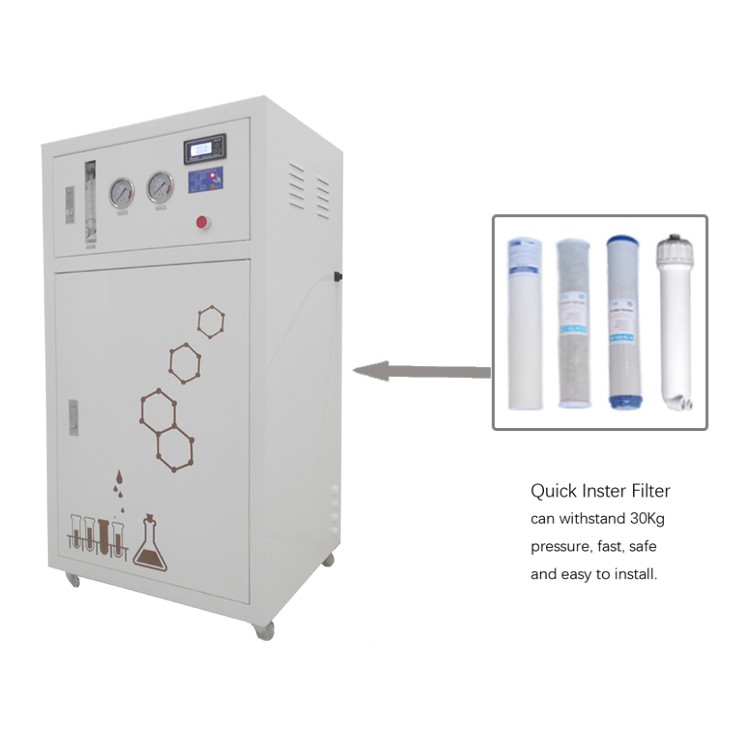

LD-RO-120

TDS <10 ppm * Total salt rejection above 95%

Features

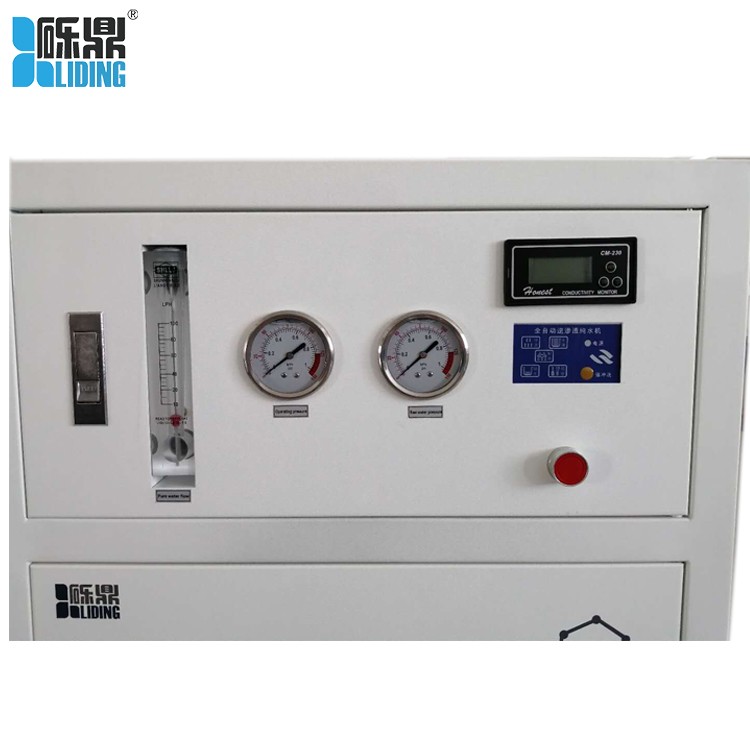

Ø Double LCD screens, fully automatic microcomputer control system

Ø Water quality online monitoring system

Ø Automatic RO membrane anti-scaling flushing program and timed flushing procedures to extend RO membrane lifetime.

Ø Real-time display working status like power, water, pump, flush, water shortage and water full  to understand the machine running status

Ø Floor-standing design, with activated and fixed stand bar at the bottom, easy to install and move

Ø Present TDS test pen


Application

Front system of ultra-pure water machine, buffer configuration, photosensitive film washing, water supply for stability experiment box, meteorological experiment equipment, hydrogen generator, battery adding liquid, electroplating and other instruments


Process

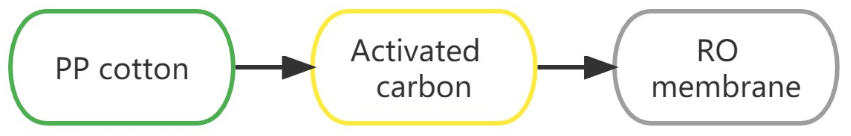

Filter function

² First stage: PP cotton (PPF filter with a pore size of 5 microns): Preliminary filtration of raw water to remove coarser particles, colloids, suspended solids, etc. in the water.

² Second stage: Granular activated carbon: high-efficiency adsorption of odor, color, organic matter, and heavy metals in water.

² Third stage: Compressed activated carbon: further remove residual chlorine, organic compounds, color, odor, turbidity, etc.

² The fourth stage: RO reverse osmosis membrane: 0.0001 micron pore size, effectively removes organic impurities such as viruses and heavy metals in water.


Parameter

Feed water request

TDS <200ppm, 5-45 ℃, 1.0-3.5Kg / cm2

Flow rate

1.5-2 L/Min ( with pressure barrel)

Water making speed

120L/H

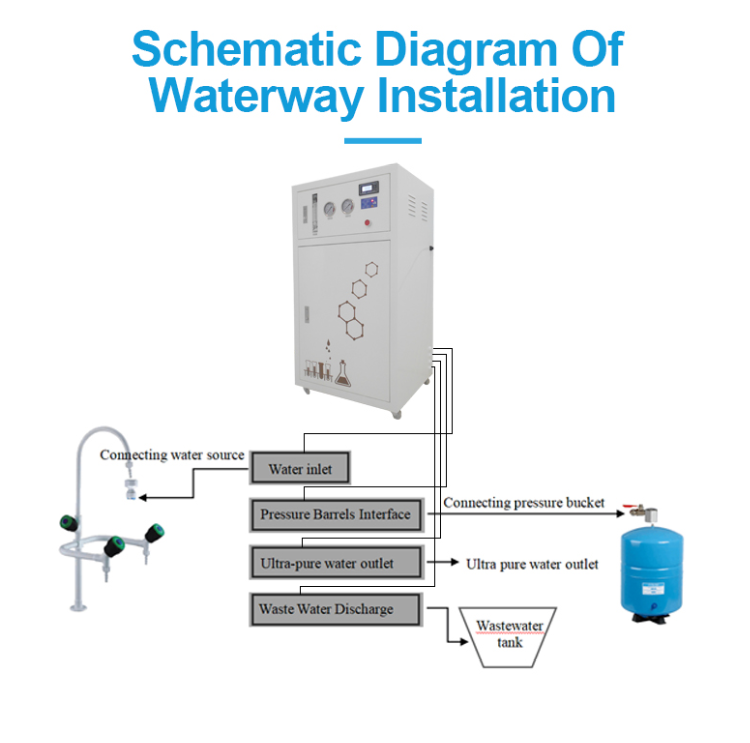

2 water outlets

RO water and DI water

RO water quality

TDS <10 ppm * Total salt rejection above 95%

Machine size (L x W x H)

50 × 52 × 108cm

Standard configuration

Machine + 11 gallon pressure tank + accessory package

Power supply

220V 50/60Hz  72-240W


Product consumables list

No

Filter element

Replace cycle

Quantity

1

20’’ PP cotton

About 4-6 month

1 pc

2

20’’ Granular activated carbon

About 4-6 month

1 pc

3

20’’ Refined activated carbon

About 4-6 month

1 pc

4

400 GPD RO membrane

About 1-2 years

              2 pcs
