LAB-Exrtact-VF

Product Features

Ø Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.

Ø Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.

Ø Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.

Ø Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.

Ø Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.

Ø Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.

Ø Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)

Application

Atomic absorption/emission spectroscopy, mass spectrum, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

Product parameter

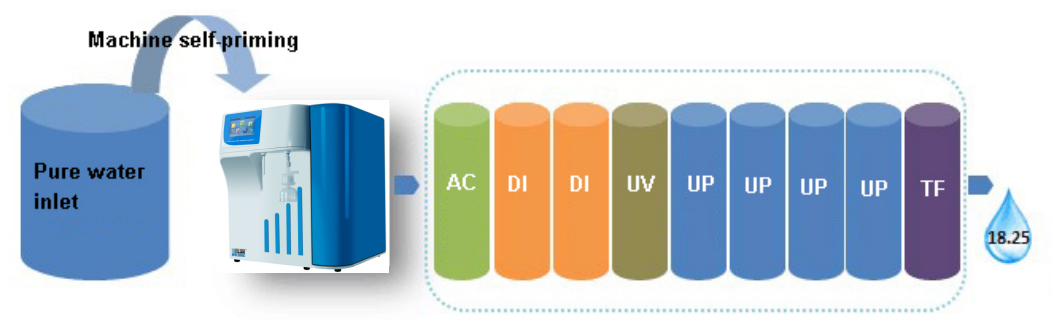

Process

Filter function

AC: Granular activated carbon filter: remove color, odor, residual chlorine and heavy metals

UV: UV germicidal lamp: sterilization device, decomposition and photo oxidation OC, lower TOC

UP: Ultra-purification column: ion exchange resin bed, H⁺ and OH^- ion removal

TF: 0.2μm terminal filter, final removal for < 0.2μm bacteria

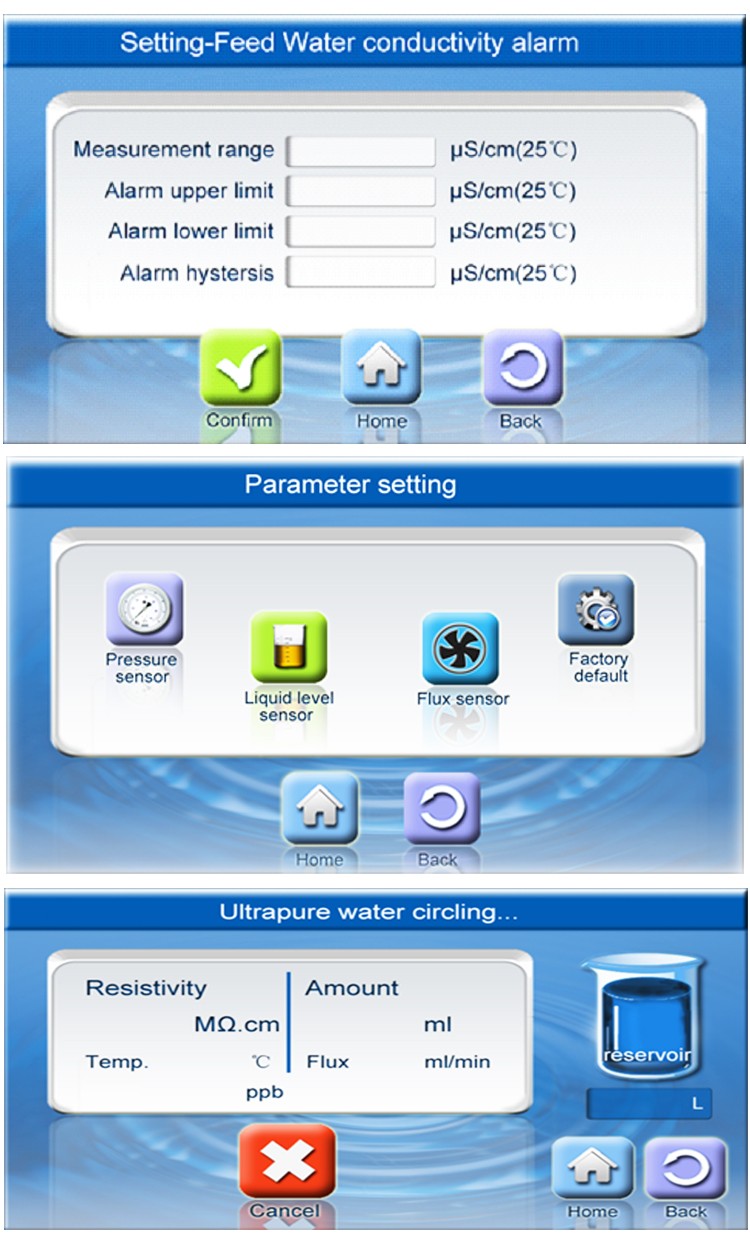

Operation screen display

Product consumables list
